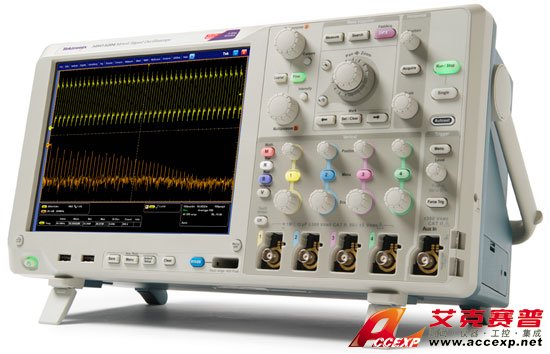

Tektronix MSO5034示波器
名称：示波器
品牌：
型号：
简介：Tektronix MSO5034示波器4条模拟通道和16条数字通道 在一台仪器上分析模拟信号和数字信号，在系统级调试复杂的设计。 Tektronix MSO5034示波器专有的FastAcq技术，迅速发现毛刺和偶发事件。250,000波形...
申请服务
- 产品介绍
Tektronix MSO5034示波器4条模拟通道和16条数字通道
在一台仪器上分析模拟信号和数字信号，在系统级调试复杂的设计。
Tektronix MSO5034示波器专有的FastAcq™技术，迅速发现毛刺和偶发事件。>250,000波形/秒的最大捕获速率，快速显示难检异常事件。
350多种触发组合，包括建立时间/保持时间触发、串行数据包触发和并行数据触发，迅速捕获异常信号。
Tektronix MSO5034示波器简便地搜索、标记和导航长记录长度，找到事件发生的所有时点。
53种自动测量、测量统计、直方图和高级波形数学运算，分析设备。
Tektronix MSO5034示波器自动触发、解码和搜索功能，迅速调试并行总线。高达60.6 ps的定时分辨率，捕获快速跳变。
自动触发、解码和搜索功能，迅速调试常见串行总线– I2C, SPI, RS-232/422/485/UART, USB2.0。
Tektronix MSO5034示波器标配抖动和眼图分析及十几种电源分析、存储器分析等选配软件包，把示波器转换成专用应用仪器。
标配4只探头，提供了业内最佳的4pF电容负荷，保证准确测量。
| Vertical System Analog Channels | |||
| Input Channels |
Analog Bandwidth (–3 dB): | 350 MHz | |
| Calculated Rise Time: | 1 ns | ||
| DC Gain Accuracy | ±1.5%, derated at 0.10%/°C above 30°C | ||
| Bandwidth Limits | Depending on instrument model: 1GHz, 500MHz, 350MHz, 250MHz, and 20MHz | ||
| Input Coupling | AC, DC | ||
| Input Impedance | 1 MΩ ±1%, 50 Ω ±1% | ||
| Input Sensitivity | 1 MΩ: 1 mV/div to 10 V/div 50 Ω: 1 mV/div to 1 V/div |
||
| Vertical Resolution | 8 bits (11 bits with Hi Res) | ||
| Max Input Voltage, 1 MΩ | 300 VRMS CAT II, with peaks ≤ ±425 V For <100 mV/div derate at 20 dB/decade above 100 kHz to 30 VRMS at 1 MHz, 10 dB/decade above 1 MHz For ≥100 mV/div derate at 20 dB/decade above 3 MHz to 30 VRMS at 30 MHz, 10 dB/decade above 30 MHz |
||
| Max Input Voltage, 50 Ω | 5 VRMS, with peaks ≤ ±20 V | ||
| Position Range | ±5 divisions | ||
| Delay between any Two Channels (Typical) |
≤100 ps (50 Ω, DC coupling and equal V/div at or above 10 mV/div) | ||
| Offset Range | |||
| Range | 1MΩ | 50Ω | |
| 1mV/div to 50mV/div | ±1V | ±1V | |
| 50.5 mV/div to 99.5 mV/div | ±0.5V | ±0.5V | |
| 100 mV/div to 500 mV/div | ±10V | ±10V | |
| 505 mV/div to 995 mV/div | ±5V | ±5V | |
| 1 V/div to 5 V/div | ±100V | ±5V | |
| 5.05 V/div to 10 V/div | ±50V | n/a | |
| Offset Accuracy | ±(0.005 x |offset – position| + DC Balance) Note: Both position and constant offset term must be converted to volts by multiplying by the appropriate volts/div term |
||
| Channel-to-Channel Isolation (Any two channels at equal Vertical Scale settings) (Typical) |
≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to the rated BW | ||
| Vertical System Digital Channels | |||
| Input Channels | 16 Digital (D15 - D0) | ||
| Thresholds | Per-channel Thresholds | ||
| Threshold Selections | TTL, ECL, User | ||
| User-defined Threshold Range | ±40V | ||
| Maximum Input Voltage | ±42Vpeak | ||
| Threshold Accuracy | ±(100 mV + 3% of threshold setting) | ||
| Input Dynamic Range | 30 Vp-p ≤200 MHz 10 Vp-p >200 MHz |
||
| Minimum Voltage Swing | 400 mV | ||
| Input Impedance | 100 kΩ | ||
| Probe Loading | 3 pF | ||
| Vertical Resolution | 1 bit | ||
| Horizontal System Analog Channels | |||
| Maximum Sample Rate (All channels) | 5 GS/s | ||
| Maximum Record Length (All channels) | 12.5M points | ||
| Maximum Duration at Highest Sample Rate | 25 ms | ||
| Time Base Range | 250 ps/div to 1000 s/div | ||
| Time Resolution (in ET/IT mode) | 2.5 ps/div | ||
| Time Base Delay Time Range | –5 divisions to 5000 s | ||
| Channel-to-Channel Deskew Range | ±75 ns | ||
| Time Base Accuracy | ±5 ppm over any ≥1 ms interval | ||
| Trigger Jitter (RMS) | ≤10 psRMS for Edge trigger type ≤100 psRMS for all Non-edge trigger types |
||
| Horizontal System Digital Channels | |||
| Maximum Sample Rate (Main) | 500 MS/s (2 ns resolution) | ||
| Maximum Record Length (Main) | Standard Config. | 12.5M Standard Up to 40M with Record Length options |
|
| With Option 2RL | 25M | ||
| With Option 5RL | 50M | ||
| With Option 10RL | 125M | ||
| Maximum Equivalent Time Sampling Rate | 400 GS/s | ||
| Maximum Sample Rate (MagniVu) | 16.5 GS/s (60.6 ps resolution) | ||
| Maximum Record Length (MagniVu) | 10k points centered around the trigger | ||
| Minimum Detectable Pulse Width (Typical) | 1ns | ||
| Channel-to-Channel Skew (Typical) | 200 ps | ||
| Maximum Input Toggle Rate | 500 MHz at minimum input swing; higher toggle rates can be achieved at higher amplitudes | ||
