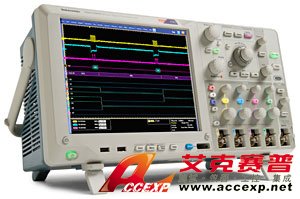

Tektronix DPO5054 500MHz,5GS/s,12.5MRecord Length示波器
名称：示波器
品牌：
型号：
简介：Tektronix DPO5054示波器简便地搜索、标记和导航长记录长度，找到事件发生的所有时点。 53种自动测量、测量统计、直方图和高级波形数学运算，分析设备。 Tektronix DPO5054示波器自动触发、解码和搜索功能，迅速调试并...
申请服务
- 产品介绍
Tektronix DPO5054示波器简便地搜索、标记和导航长记录长度，找到事件发生的所有时点。
53种自动测量、测量统计、直方图和高级波形数学运算，分析设备。
Tektronix DPO5054示波器自动触发、解码和搜索功能，迅速调试并行总线。高达60.6 ps的定时分辨率，捕获快速跳变。
自动触发、解码和搜索功能，迅速调试常见串行总线– I2C, SPI, RS-232/422/485/UART, USB2.0。
Tektronix DPO5054示波器标配抖动和眼图分析及十几种电源分析、存储器分析等选配软件包，把示波器转换成专用应用仪器。
标配4只探头，提供了业内最佳的4pF电容负荷，保证准确测量。
Tektronix DPO5054示波器在一台仪器上分析模拟信号和数字信号，在系统级调试复杂的设计。
Tektronix DPO5054示波器专有的FastAcq™技术，迅速发现毛刺和偶发事件。>250,000波形/秒的最大捕获速率，快速显示难检异常事件。
350多种触发组合，包括建立时间/保持时间触发、串行数据包触发和并行数据触发，迅速捕获异常信号。
| Vertical System Analog Channels | |||
| Input Channels | Analog Bandwidth (–3 dB): | 500 MHz | |
| Calculated Rise Time: | 700 ps | ||
| DC Gain Accuracy | ±1.5%, derated at 0.10%/°C above 30°C | ||
| Bandwidth Limits | Depending on instrument model: 1GHz, 500MHz, 350MHz, 250MHz, and 20MHz | ||
| Input Coupling | AC, DC | ||
| Input Impedance | 1 MΩ ±1%, 50 Ω ±1% | ||
| Input Sensitivity | 1 MΩ: 1 mV/div to 10 V/div 50 Ω: 1 mV/div to 1 V/div |
||
| Vertical Resolution | 8 bits (11 bits with Hi Res) | ||
| Max Input Voltage, 1 MΩ | 300 VRMS CAT II, with peaks ≤ ±425 V For <100 mV/div derate at 20 dB/decade above 100 kHz to 30 VRMS at 1 MHz, 10 dB/decade above 1 MHz For ≥100 mV/div derate at 20 dB/decade above 3 MHz to 30 VRMS at 30 MHz, 10 dB/decade above 30 MHz |
||
| Max Input Voltage, 50 Ω | 5 VRMS, with peaks ≤ ±20 V | ||
| Position Range | ±5 divisions | ||
| Delay between any Two Channels (Typical) |
≤100 ps (50 Ω, DC coupling and equal V/div at or above 10 mV/div) | ||
| Offset Range | |||
| Range | 1MΩ | 50Ω | |
| 1mV/div to 50mV/div | ±1V | ±1V | |
| 50.5 mV/div to 99.5 mV/div | ±0.5V | ±0.5V | |
| 100 mV/div to 500 mV/div | ±10V | ±10V | |
| 505 mV/div to 995 mV/div | ±5V | ±5V | |
| 1 V/div to 5 V/div | ±100V | ±5V | |
| 5.05 V/div to 10 V/div | ±50V | n/a | |
| Offset Accuracy | ±(0.005 × |offset – position| + DC Balance) Note: Both position and constant offset term must be converted to volts by multiplying by the appropriate volts/div term |
||
| Channel-to-Channel Isolation (Any two channels at equal Vertical Scale settings) (Typical) |
≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to the rated BW | ||
| Horizontal System Analog Channels | |||
| Maximum Sample Rate (All channels) | 5 GS/s | ||
| Maximum Record Length (All channels) | Standard Config. | 12.5M points | |
| With Option 2RL | 25M | ||
| With Option 5RL | 50M | ||
| With Option 10RL | 125M | ||
| Maximum Equivalent Time Sampling Rate | 400 GS/s | ||
| Maximum Duration at Highest Sample Rate | 25 ms | ||
| Time Base Range | 250 ps/div to 1000 s/div | ||
| Time Resolution (in ET/IT mode) | 2.5 ps/div | ||
| Time Base Delay Time Range | –5 divisions to 5000 s | ||
| Channel-to-Channel Deskew Range | ±75 ns | ||
| Time Base Accuracy | ±5 ppm over any ≥1 ms interval | ||
| Trigger Jitter (RMS) | ≤10 psRMS for Edge trigger type ≤100 psRMS for all Non-edge trigger types |
||
