简介：Agilent M9168C is a programmable step attenuator module based on PXI hybrid platform. The M9168C operates from DC to 26....
申请服务
- 产品介绍

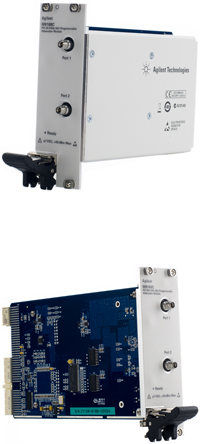

Agilent M9168C is a programmable step attenuator module based on PXI hybrid platform. The M9168C operates from DC to 26.5 GHz with a guaranteed 0.03 dB insertion loss repeatability for each section throughout the 5 million cycles operating life. Agilent M9168C Superior attenuation accuracy across a wide operating temperature range ensures precise measurements.
Agilent M9168C is a signal conditioning module that enhances the measurement accuracy and flexibility of PXI based RF and Microwave test systems.
Agilent M9168CApplication-focused Benefits
Guaranteed 0.03 dB insertion loss repeatability throughout the operating life of 5 million cycles reduces downtime for recalibration, improves testing efficiency, and therefore maximizing throughput
Broad attenuation range of up to 101 dB maximizes system flexibility
Superior attenuation accuracy ensures precise measurements across a wide temperature range
Agilent M9168C Functionality
Accurate control of RF power levels
Unmatched RF performance
Guaranteed 0.03 dB insertion loss repeatability throughout the operating life of up to 5 million cycles per section
Broad attenuation range of 0 to 101 dB with 1 dB, 5 dB and 10 dB step
High attenuation accuracy with flatness of ±0.4 dB at 26.5 GHz
Product availability
The Agilent M1968C PXI hybrid programmable step attenuator is available to order now, with shipments in Winter 2011
For more information, download flyer or contact your local Agilent representative
