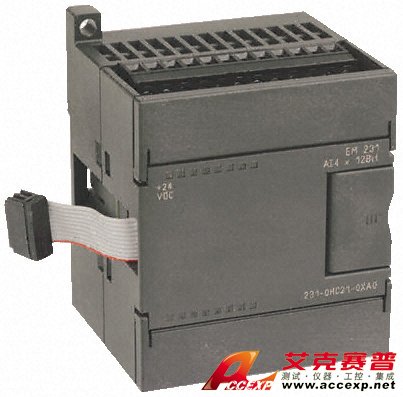

Siemens西门子 S7-200 EXPAN MOD AN I/P3 6ES72310HC220XA0
| 详情 | |||||
| S7-200 - expansion module | |||||
| Expansion Modules for S7-200 | |||||
| Selection guide | |||||
| Attribute | EM 221 8 DE(DC) | EM 221 16 DE(DC) | EM 221 8 DE (AC) | EM222 4 DA (DC) | EM222 8 DA (DC) |
| Input type | DC 24 V | DC 24 V | AC 120 / 230 V | - | - |
| Input voltage | DC 24 V, max. 30V | DC 24 V, max. 30V | AC 120 / 230 V | - | - |
| Electrical isolation | Yes | Yes | Yes | - | - |
| In groups of | 4 inputs | 4 Inputs | 1 input | - | - |
| Output type | - | - | - | DC 24 V | DC24 V |
| Output current | - | - | - | 5A | 0.75A for higher switching capacity |
| parall. Switchable | |||||
| Output voltage DC | - | - | - | 20.4 → 28.8 V | 20.4 → 28.8 V |
| (perm. range) AC | - | - | - | - | - |
| Electrical isolation | - | - | - | Yes | Yes |
| In groups of | - | - | - | 1 output | 4 outputs |
| Remov. terminal strip | Yes | Yes | Yes | Yes | Yes |
| Dimensions (WxHxD) | 46 x 80 x 62 | 71.2 x 80 x 62 | 71.2 x 80 x 62 | 45 x 80 x 62 | 46 x 80 x 62 |
| Attribute | EM 241 Modem | ||||
| Connection | RJ11 | ||||
| Operating modes | Teleservice, Modbus Master/Slave, SMS transmission, Pager messages, | ||||
| CPU / CPU communication (Modbus or PPI) | |||||
| Modem standards | Bell 103, Bell 212 V21, V22, V22 → V23c, V32, V32 → V34 | ||||
| Dimensions (WxHxD) | 71.2 x 80 x 62 | ||||
| Attribute | EM 277 PROFIBUS-DP Module | CP 243-2 AS Interface Module | |||
| Interface | 1 x RS 485 | AS Interface | |||
| Supported | MPI Slave/PROFIBUS-DP | AS-i | |||
| protocols | |||||
| Transmission speeds | 9,600 baud → 12 Mbaud self-negotiating | Max. 5 ms cycle time for 31 slaves | |||
| Connectable | Text Display TD | Max. 31 AS Interface Slaves | |||
| subscribers | 200 from V2.0 | ||||
| Operator Panels | |||||
| Touch Panels PG / PC with MPI I interface CPU | |||||
| S7-300/400 PROFIBUS-DP Master or Slaves | |||||
| Status indicators | CPU Error, Power, DP Error, DX Mode | Status indicators for slaves, | |||
| Error indicators | |||||
| Station address | Can be set at module (0 → 99) | Not necessary | |||
| Galvanic | 500 V AC | No | |||
| isolation | |||||
| Max. Cable lengths (without repeater) | 1200 m (at 93.75 kBaud) | 100 m | |||
| Dimensions (WxHxD) | 71 x 80 x 62 | 71.2 x 80 x 62 | |||
| Cross reference to manufacturer's part no. | |||||
| Stock no. | Manuf. part No. | Stock no. | Manuf. part No. | ||
| 6ES72211BF220XA0 | 6ES72231PH220XA0 | ||||
| 329-6175 | 329-6131 | ||||
| 6ES72317PB220XA0 | 6ES72231PL220XA0 | ||||
| 434-1844 | 425-0293 | ||||
| 6ES72211EF220XA0 | 6ES72221HF220XA0 | ||||
| 469-1773 | 434-1743 | ||||
| 6ES72211EF220XA0 | 6ES72310HC220XA0 | ||||
| 469-1773 | 434-1816 | ||||
| 6ES72221BD220XA0 | 6ES72320HB220XA0 | ||||
| 468-5778 | 329-6096 | ||||
| 6ES72221BF220XA0 | 6ES72350KD220XA0 | ||||
| 434-1737 | 434-1838 | ||||
| 6ES72221HD220XA0 | 6ES72317PD200XA0 | ||||
| 468-5784 | 374-8957 | ||||
| 6ES72211HF220XA0 | 6ES72317PB200XA0 | ||||
| 329-6153 | 374-8941 | ||||
| 6ES72221EF220XA0 | 6ES72531AA220XA0 | ||||
| 433-9510 | 433-9532 | ||||
| 6ES72231BF220XA0 | 6ES72411AA220XA0 | ||||
| 349-2070 | 433-9526 | ||||
| 6ES72231BH220XA0 | 6ES72770AA200XA0 | ||||
| 329-6147 | 374-8935 | ||||
| 6ES72231BL220XA0 | 6GK72432AX010XA0 | ||||
| 434-1793 | 434-1872 | ||||
| 6ES72221BF220XA0 | 6ES72350KD220XA0 | ||||
| 434-1737 | 434-1838 | ||||
| 6ES72311PB220XA0 | 6ES72317PD220XA0 | ||||
| 434-1872 | 434-1850 | ||||
| Attribute | EM222 8 DA (Rel.) | EM 222 4 DA (Rel.) | EM 222 8 DA(AC) | EM 223 4 DE | EM 223 8 DE |
| (DC) / 4 DA (DC) | (DC) / 8 DA (DC) | ||||
| Input type | - | - | - | DC 24 V | DC 24 V |
| Input voltage. | - | - | - | DC 24 V, max. 30 V | - |
| Electrical isolation | - | - | - | Yes | Yes |
| In groups of | - | - | - | 1 input | 4 Inputs |
| Output type | Relay | Relay | AC 120 / 230 V | DC 24 V | DC 24 V |
| Output current | 2 A | 10A | 0.5A | 0.75A for higher switching capacity in groups parall. Switchable | 0.75A for higher switching capacity in groups parall. Switchable |
| Output voltage. DC | 5 → 30 V | 5 → 30 V | - | 20.4 → 28.8 V | 20.4 → 28.8 V |
| (perm. range) AC | 5 → 250V | 5 → 250 V | 65 → 264 V | - | - |
| Electrical isolation | Yes | Yes | Yes | Yes | Yes |
| In groups of | 4 outputs | 1 output | 1 output | 1 output | 4 outputs |
| Remov. terminal strip | Yes | Yes | Yes | Yes | Yes |
| Dim. (W x H x D) | 46 x 80 x 62 | 46 x 80 x 62 | 71.2 x 80 x 62 | 46 x 80 x 62 | 71.2 x 80 x 62 |
| Attribute | EM 223 16 DE | EM 223 4 DE | EM 223 8 DE (DC) | EM 223 16 DE (DC) | |
| (DC) / 16 DA (DC) | (DC) / 4 DA (Rel.) | 8 DA (Rel.) | 16 DA (Rel.) | ||
| Input type | DC 24 V | 24V DC | DC 24 V | DC 24 V | |
| Input voltage. | - | DC 24 V, max. 30V | DC 24 V, max. 30V | DC 24 V, max. 30V | |
| Electrical isolation | Yes | Yes | Yes | Yes | |
| In groups of | 8 inputs | 1 input | 2 inputs | 2 inputs | |
| Output type | 24V DC | Relay | Relay | Relay | |
| Output current | 0.75A for higher switching capacity | 2A 5 → 30V | 2 A | 2 A | |
| in groups parall. Switchable | |||||
| Output voltage. DC | 20.4 → 28.8 V | 5 → 250V | 5 → 30 V | 5 → 30 V | |
| (perm. range) AC | - | - | 5 → 250V | 5 → 250V | |
| Electrical isolation | Yes | Yes | Yes | Yes | |
| In groups of | 4/4/8 outputs | 1 output | 2 outputs | 4 outputs | |
| Remov. terminal strip | Yes | Yes | Yes | Yes | |
| Dim. (W x H x D) | 137.3 x 80 x 62 | 46 x 80 x 62 | 71.2 x 80 x 62 | 137.5 x 80 x 62 | |
| Attribute | EM 223 8 DE | EM 223 16 DE | EM 223 4 DE | ||
| (DC) / 8 DA (DC) | (DC) / 16 DA (DC) | (DC) / 4 DA (Rel.) | |||
| Input type | DC 24 V | DC 24 V | 24V DC | ||
| Input voltage. | - | - | DC 24 V, max. 30V | ||
| Electrical isolation | Yes | Yes | Yes | ||
| In groups of | 4 Inputs | 8 inputs | 1 input | ||
| Output type | DC 24 V | 24V DC | Relay | ||
| Output current | 0.75A for higher | 0.75A for higher | 2 A | ||
| switching capacity | Switching capacity | 5 → 30 V | |||
| in groups | in groups | ||||
| parall. Switchable | parall. Switchable | ||||
| Output voltage. DC | 20.4 → 28.8 V | 20.4 → 28.8 V | 5 → 250V | ||
| (perm. range) AC | - | - | - | ||
| Electrical isolation | Yes | Yes | Yes | ||
| In groups of | 4 outputs | 4/4/8 outputs | 1 output | ||
| Remov. terminal strip | Yes | Yes | Yes | ||
| Dim. (W x H x D) | 71.2 x 80 x 62 | 137.3 x 80 x 62 | 46 x 80 x 62 | ||
| Attribute | EM 223 8 DE (DC) | EM 223 16 DE (DC) | |||
| 8 DA (Rel.) | 16 DA (Rel.) | ||||
| Input type | DC 24 V | DC 24 V | |||
| Input voltage. | DC 24 V, max. 30V | DC 24 V, max. 30V | |||
| Electrical isolation | Yes | Yes | |||
| In groups of | 2 inputs | 2 inputs | |||
| Output type | Relay | Relay | |||
| Output current | 2 A | 2 A | |||
| Output voltage. DC | 5 → 30 V | 5 → 30 V | |||
| (perm. range) AC | 5 → 250V | 5 → 250V | |||
| Electrical isolation | Yes | Yes | |||
| In groups of | 2 outputs | 4 outputs | |||
| Remov. terminal strip | Yes | Yes | |||
| Dim. (W x H x D) | 71.2 x 80 x 62 | 137.5 x 80 x 62 | |||
| Attribute | EM2314AE | EM2322AA | EM231TC | EM2354AE /1AA | EM2354AE /1AA |
| Input type | 0 → 10 V / 0 → 20 mA | - | ±80mV | 0 → 10 V / 0 → 20 mA | |
| Input | 0 → 5 V, 0 → 10 V, | - | Thermo- | 0 → 10 V, 0 → 5 V +/- 10 V, | |
| Voltage | +/- 2.5 V, | couple | +/- 5 V, +/- 2.5 V, | ||
| +/-5 V, | Types J, K, T, | +/- 1 V +/- 500 mV, | |||
| 0 → 20 mA | E,R,S,N | +/- 50 mV and | |||
| other Ranges: | |||||
| Resolution | 12 bit | - | 12 bit | 12 bit | |
| Potential separ. | No | - | No | ||
| Output type | - | 10 → 10 V, 4 → 20 mA | +/- 10 V, 0 → 20 mA | ||
| Resolution | - | 12 bit volt. | 12 bit volt. | ||
| 11 bit current | 11 bit current | ||||
| Electrical isolation | - | No | No | ||
| Remov. terminal strip | No | No | No | ||
| Dimensions (W x H x D) | 71.2 x 80 x 62 | 46 x 80 x 62 | 71.2 x 80 x 62 | ||
| Attribute | EM 231 4 AE TC | EM 231 2 AE RTD | |||
| Input type | TC Types S, T, R, E, N, K, J | RTD Types include: PT100, PT500, PT1000 | |||
| Input voltage | DC 30 V | DC 30 V (sensor), DC 5 V (source) | |||
| Resolution | 15 bit + prefix | 15 bit + prefix | |||
| Electrical isolation | Yes | Yes | |||
| Output type | - | - | |||
| Resolution | - | - | |||
| Electrical isolation | - | - | |||
| Remov. terminal strip | No | No | |||
| Dimensions (WxHxD) | 71.2 x 80 x 62 | 71.2 x 80 x 62 | |||
| Attribute | EM 253 Positioner Module | ||||
| Output type | Stepper and servo motors | ||||
| Signal outputs | 4, RS422 / RS485 or DC 5 V | ||||
| Electrical isolation | Yes | ||||
| Switching frequency | max. 200kHz | ||||
| Digital inputs | 5: STP, RPS, LMT+, LMT-, ZP | ||||
| Input voltage | DC 24 V | ||||
| Dimensions (WxHxD) | 71.2 x 80 x 62 | ||||
| Attribute | EM 231 RTD | EM 231 2 TC | |||
| Input type | - | ±80mV | |||
| Thermocouple | - | Types J, K, T, E, R, S, N | |||
| Resistance temperature sensor | Pt100 / 200 / 500 / 1000 / | - | |||
| 10000 / Ni100 / 120 / 1000 / Co10 | - | ||||
| Resistance | 150 / 300 / 600 ohms | - | |||
| Resolution | 15 Bit | ||||
| Electrical isolation | - | - | |||
| Output type | - | - | |||
| Resolution | - | - | |||
| Electrical isolation | - | - | |||
| Remov. terminal strip | - | - | |||
| Dimensions (WxHxD) | |||||
系列概览
Siemens S7-200 基本装置 - 第 3 代
S7 可向用户提供针对多种控制应用的强大解决方案，便于调整和扩展系统。 S7 属于 PLC 系列，其允许用户专门对其元件的选择，以最适合其要求，并且是取得成功的 S5 系列的长期继承者。 对于 S5 可以执行的所有操作，S7 均能够以更快速且更简便地完成。
当前的第 3 代 S7-200 以初始系列的成功为基础，并且采用新的 CPU，以制作速度更快、功能更强的 PLC 系列。 随着新的 224XP 的引入，CPU 的可用系列得以扩展，因为 CPU 具有数字、模拟和通信扩展?？橄盗?。
对于更快类型的应用，可以使用全系列内置中断来轻松实现实时控制。 提供定时、通信、高速计数器、高速脉冲输出和硬件中断功能，并且实施优先级表意味着可同时执行所有中断。
内置了与 S7-200 的通信功能?？赏üご?1200m 、具有多达 126 个节点的双线网络实现 PLC 之间通信。 在“自由端口”模式中，PLC 的 RS-485 端口以自由 ASC11 模式运行，这使其可与其他设备进行通信。
Siemens 的目标是尽可能使 S7-200 编程做到用户友好，按照这一目标，MicroWin 编程软件已得到进一步改进。 这些改进均有助于减少程序开发时间。 通过添加更多“向导”并改进现有“向导”可实现此目标。 这些改进有助于程序开发人员开发程序中更例行/复杂的部分，例如 TD200 配置、PID 环路配置、高速计数器配置等。提供上下文相关帮助，这意味着用户只需手指点击即可获取所有所需信息。
- 新型 CPU 硬件支持，提供可关闭运行模式编辑的选项，可获取更多程序内存
CPU 224XP，支持板载模拟输入/输出和 2 个通信端口
CPU 226，提供附加输入滤波器和脉冲捕捉设备
每个指令的处理时间为 0.22μs
- ?？榛┱?，总计多达 256 路输入/输出（S7-221 除外）
强大的指令集和实时性能
通过 RS-485 通信端口进行编程
所有型号均具有 EEPROM 存储器，用于存储用户程序
2 或 4 路 30kHz 脉冲序列输出（仅限直流供电型号）
